Hose Reel Irrigation System

Hose Reel Irrigation System

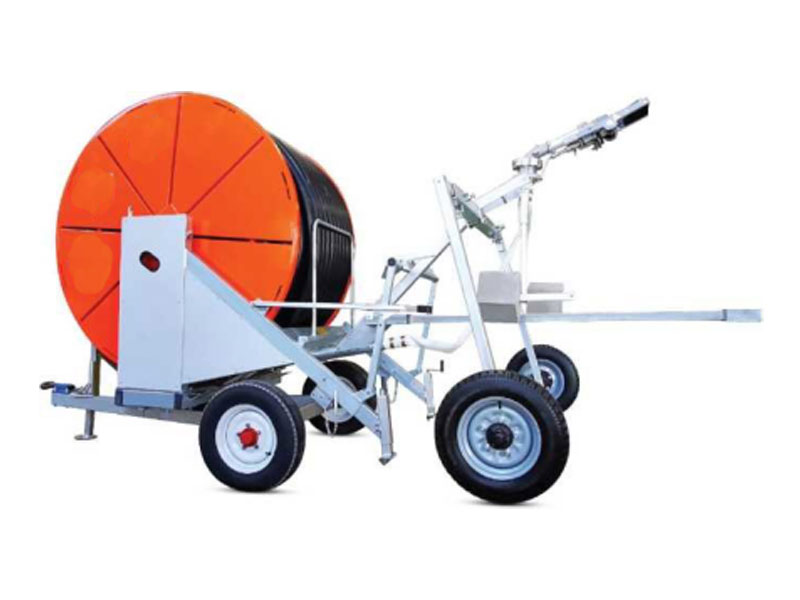

Hose Reel Irrigation System is an irrigation machine that uses the sprinkler pressure water to drive the water turbine to rotate, drives the winch to rotate through the speed change device, and pulls the sprinkler head to automatically move and spray. It has the advantages of convenient movement, simple operation, labor and time saving, high irrigation precision, good water saving effect, strong adaptability, etc. It is a water-saving irrigation equipment suitable for 100-300 mu of strip fields.

● Advantages

1、The rotation angle can be adjusted between 0-360°, and the atomization effect is good under low water pressure. It is specially designed for modern water-saving irrigation.

2、Water turbine is a new type of high-efficiency and energy-saving axial-flow water turbine. With its unusually low-pressure loss, it has once again created a new standard for saving consumption of sprinklers.

The new structure nearly doubles the efficiency of the previous generation of water turbines, greatly reducing operating losses.

In the case of low water flow, strong recovery power and high recovery speed are also guaranteed.

Precisely integrated control system to ensure uniform spraying within the sprinkler irrigation range.

3、The truss is made of high-quality stainless steel tube, which is easy to install and disassemble. The length of the truss is 26m, the spraying width is 34m, and it is equipped with #11~#19 high-quality full-circle/semi-circle nozzles to achieve excellent atomization effect and spray uniformity. It is suitable for irrigating delicate crops without damaging the soil and crops.

4、Even on uneven ground, the balance structure of the system can automatically adjust and ensure the correct irrigation angle, thus protecting crops.

● Types of Hose Reel Irrigation System

 1、With Big Gun: Ultra-long range, perfect irrigation uniformity, simulate artificial rainfall, and irrigate various high and low-stem crops in a concise way;

   2、Boom Truss: irrigate delicate crops with low pressure without damaging the soil and crops, and the control width can reach 34m.

● Features

1、Small and medium-sized mobile irrigation equipment is suitable for 100-300 mu of strip-shaped fields, which is convenient for water-saving irrigation of small rural fields, and can also be used as a supplementary irrigation for the four corners of the center pivot irrigation system;

2、The investment is low, the average service life of the whole machine is more than 15 years, and the service life of the PE pipe is more than 10 years;

3、High degree of automation, saving labor, precise irrigation, and higher irrigation uniformity;

4、Easy to move, simple to operate, good water-saving effect, uniform spraying, adjustable spraying height and wheel spacing.

Advantages of LINDA Pivot Irrigation System

1、Technology:  American technology

• The lower chord of span is longer than the upper chord, the center of gravity is low, and the anti-fall ability and climbing ability are strong;

• The truss has wider angle to improve the wind resistance;

• The ball-hole flexible connection across span can move flexibly on complex terrain without stress.

2、Reliable quality: core components are imported, main components are produced by self, and the quality can be traced.

• American eagle percentage meter, Schneider and Siemens and other core components is used in Control Panel.

• The driving system adopts professionally customized high-performance motor and gearbox, as well as special tires;

• The spraying system adopts world-renowned sprinklers such as Nelsen D3000 and R3000 series or Komet KPT series from Italy;

• The cable adopts 11-core special copper cable with armor.

 3、Large-scale: annual output of 5,000 irrigation machines; OEM production for domestic and foreign counterparts all year round;

As of 2021, Sold more than 12,000 sets of irrigation machines at local and abroad market, with an irrigated area of more than 6 million mu. It is currently the largest manufacturer of irrigation machines in Chinese market. In 2017, Selected as the sixth leading manufacturer of irrigation machines in the world.

4、High-quality service: More than 20 experienced technical engineers to provide lifelong after-sales service for customers.

5、Safety

• The synchronization protection function can realize the synchronization of the machine running; when the deviation angle is too large, it will automatically stop for protection;

• Emergency stop function, once any problem occurs, as long as the emergency stop button is pressed, the entire equipment can stop running;

• Low voltage protection function: controlled by the low voltage protector, it will automatically stop when the voltage is low;

• Voltage oscillation automatic shutdown function: when the voltage fluctuation is too large, it can automatically shutdown to protect electrical components;

• Lightning protection overload protection function, effectively prevent lightning.

Description of Main Components of LINDA Irrigation Machine

Pivot Tower

Using HDG 95MM large angle steel, strong anti-corrosion grade and high strength.

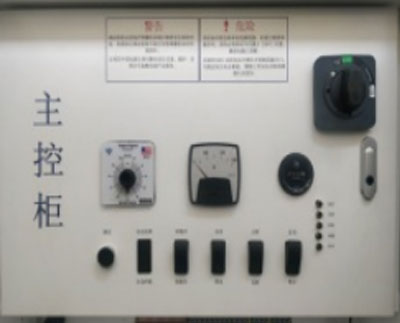

Control Panel

The surface of control panel is treated with baking paint, and the inner and outer doors are double sealed to effectively prevent sand and rain.

American Pierce technology is adopted, which is stable, reliable, and has rich functions. American eagle percentage meter and HoneyWell micro switches and French Schneider contactors are used, with rainproof function. The keys are dustproof, and the dustproof grade reaches IP54, before leaving the factory, strict testing is carried out to ensure the stability of the entire control system.

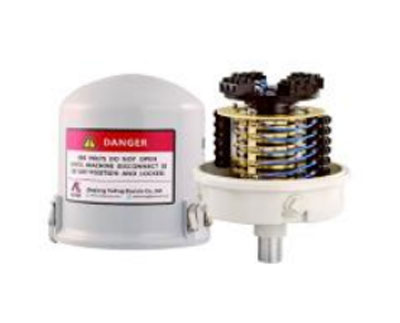

Collector Ring

To transmit input power to the pivot, use a watertight seal. Standard stainless-steel conduit ensures years of trouble-free operation.

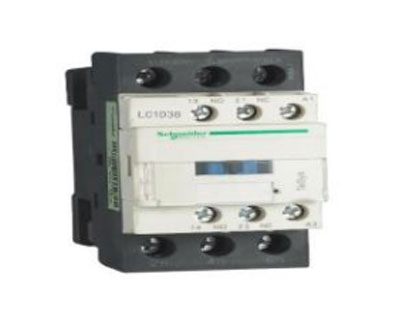

Contactor:

French Schneider brand.

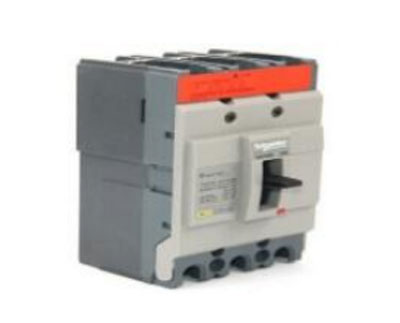

Main switch:

French Schneider brand.

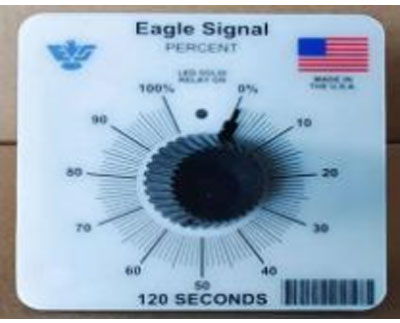

Percentage Meter:

Danaher EAGLE SIGNAL brand (Eagle)

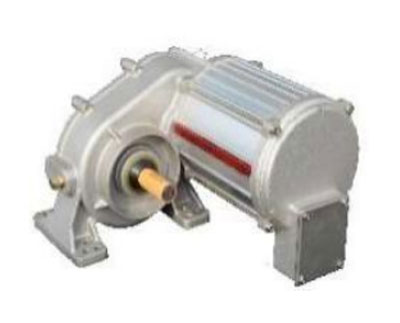

Motor

1、Strong adaptability to the environment; not affected by extreme cold and heat; low failure rate; low maintenance rate; and safe and reliable.

2、With protection function, there will be no fuse or broken wire in the case of voltage instability and overload.

3、The aluminum alloy shell can be effectively waterproof and sealed.

4、The motor is well sealed, does not leak oil, and has a long service life.

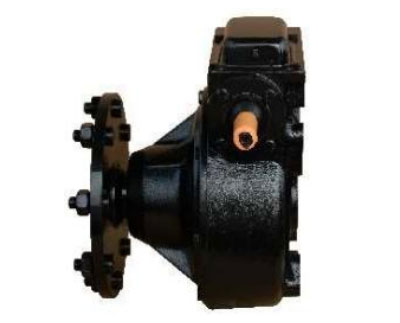

Gearbox

1、Suitable for different field conditions, safe and reliable.

2、Cassette input and output oil seals can effectively prevent oil leakage.

3、The outside of the input and output shafts are protected against dust.

4、Stainless steel full-circulation expansion chamber, using extreme pressure gear oil, has remarkable lubricating protection performance for worm gears.

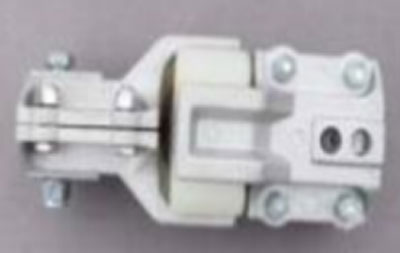

Flex. Coupler

Aluminum alloy material, easy to use and maintain, with overload protection function for motor.

Wheel ASM

1、Natural rubber is used, anti-aging and wear-resistant;

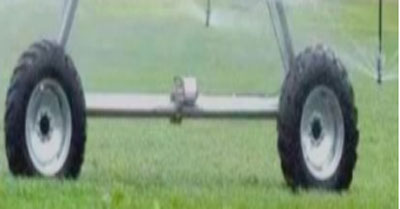

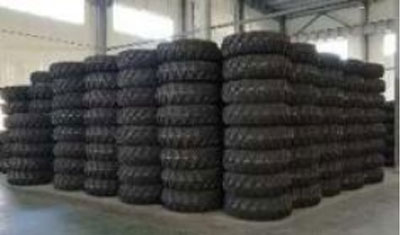

2、14.9-W13-24 tires for irrigation with large pattern, herringbone facing outwards, and strong climbing ability.

Drive Line

1、High-strength 45# steel is used to enhance the stability of the equipment and has a long service life.

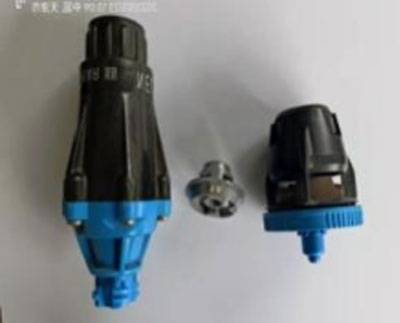

Sprinkler, Regulator

1、Using the original Nelsen D3000 nozzle from the United States, with high spraying uniformity, good atomization effect, and small impact on crops and soil.

2、Pressure regulator, 15PSI, to ensure that the spraying pressure of all nozzles is consistent and is not affected by terrain factors;

3、Using high-quality raw materials, anti-wear, anti-ultraviolet aging, long service life.

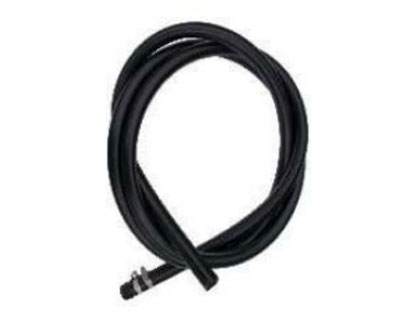

Hose

1、Hose is made of polyurethane material, with wear-resistant, oil-resistant, high-temperature resistant, soft, and not easy to age and crack;

2、Maintain plasticity, no hardening, no brittleness and no fracture at minus 40 degrees;

3、Add anti-UV agent, anti-ultraviolet aging, long service life.

Weight

It is injection molded with a mold that matches the texture of the regulator, galvanized, beautiful, and has a long service life.

Span Connection

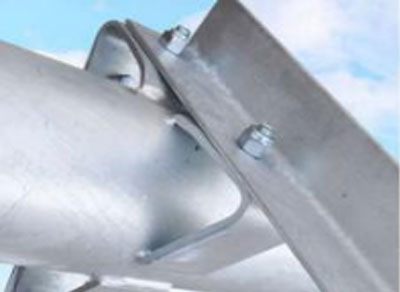

1、Ball-hole connection method is used, and the rubber tube is connected between the ball tube and the hole tube, which has strong terrain adaptability and greatly improves the climbing ability;

2、The connection more perfectly reflects the ductility between spans, which can cope with the tensile force of the steel in cold climates and avoid equipment collapse.

Main Pipe:

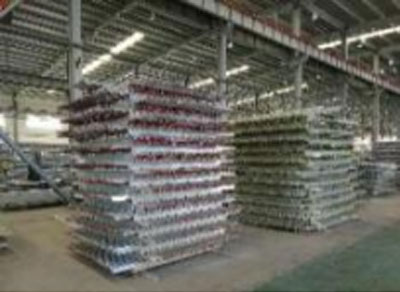

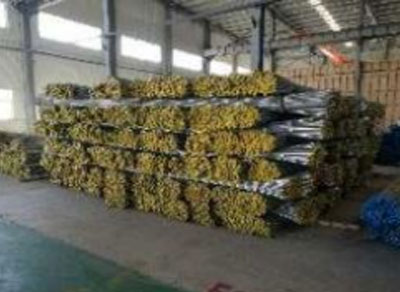

1、Q235B Material steel grade with the Dia168mm or 219mm. with the structure of more stable, high impact resistance, low temperature resistance, and higher toughness;

2、one-time hot-dip galvanizing treatment after processed and welded. The thickness of the galvanized layer is 80um, which is much higher than industry standard, with high corrosion resistance and a service life of more than 20 years;

3、After processing, each main pipe is tested for its welding strength by a drawing machine to ensure a 100% pass rate.

Span Angles:

All use the national standard angle steel for high-voltage transmission towers, with strong toughness and long service life.

Truss Rod

1、d:Φ22mm and Φ20mm of the tie bars with high stress strength.

2、The two ends are formed by one pier, so that the whole parts have no welds and no fractures.

Truss Tower

1、The main tower is composed of 75mm angle iron, and is V-shaped, which can effectively support the truss and greatly improve the stability of the equipment;

2、Double fixing is used at the connection between tower legs and pipelines, which greatly improves the stability of equipment operation.

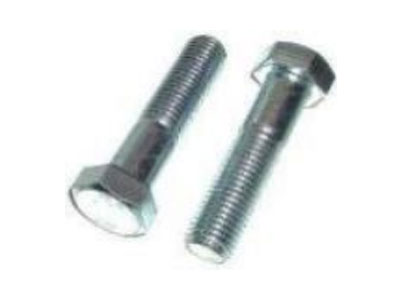

Bolts:

All fastening bolts are made of 8.8-grade galvanized high-strength self-locking bolts, which ensure the stability and corrosion resistance of the equipment structure.

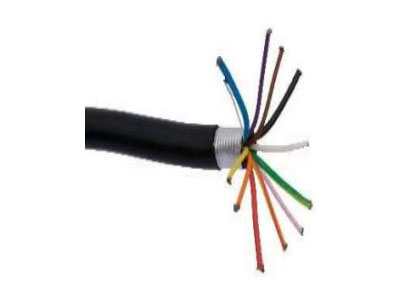

Cable

1、Span Cable adopts 3-layer 11-C aluminum armored cable, with strong signal shielding performance, and multiple devices running at the same time will not interfere with each other;

2、Motor cable adopts 3-layer 4-C aluminum armored cable;

3、The cable sheath is made of Dow PE sheath material, with excellent low temperature resistance, sunlight resistance, fertilizer resistance and herbicide resistance. Span cable options: 10AWG and 12AWG gauge wire for power cables and 16AWG gauge wire for control cables. Cables are color-coded for easy repair and maintenance.

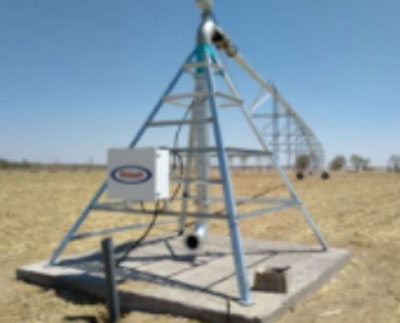

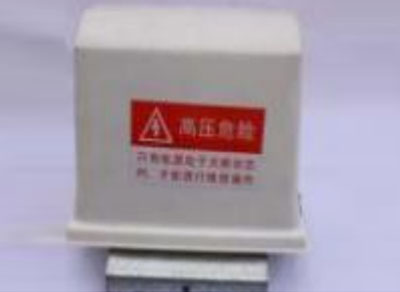

Tower Box

The shell of tower box is injection-molded with special materials, with great anti-aging ability, stainless steel base plate, Honeywell Micro Switch.

Features:

1、The synchronous protection function can realize the synchronous walking of the machine. If the deviation angle is too large, it will automatically stop for protection;

2、Emergency stop function, once any problem occurs, as long as the emergency stop button is pressed, the entire equipment can stop running;

3、Low voltage protection function, controlled by low voltage protector to realize automatic shutdown of low voltage;

4、Automatic shutdown function of voltage shock, if the voltage fluctuation is too large, automatic shutdown can be realized to protect electrical components;

5、Lightning protection and overload protection function, effectively prevent lightning.

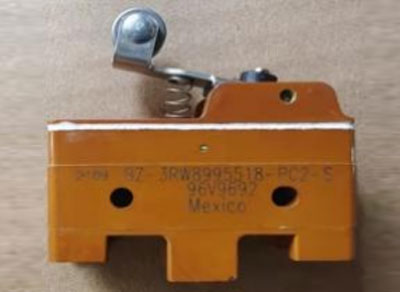

Micro Switch:

Honeywell, imported original, long service life
